Single Needle Panel Quilting Machine

XL6000 Computer Quilter can produce up to 250 comforters per shift with just one operator.

The XL6000 Computer Quilter is a custom servo automation system that we designed and manufactured for the industrial quilting industry. It has the capability to produce up to 250 comforters per shift with just one operator.

Featuring a three-axis digital brushless servo control system, which provides superior quality patterns, ease of pattern and size changes, as well as low maintenance operation. The XL6000 is an IIS-based custom servo automation system, and is capable of sewing various quilt patterns that are supplied to the machine in a G-code machine format. G-code is used because it is the most widely used CNC language.

The design incorporates the Emerald Programmable Automation Controller, 3 servo motors, Emerald servo drives, as well as fiber optic devices. The Emerald programming language has a powerful set of math, motion, I/O and networking instructions for this custom designed software application program.

The system can run standard material sizes up to 96” x 108”, and features maximum axis speeds of 1,000 inches per minute, and maximum of 4,000 stitches per minute. With a footprint of 5′ x 17′, the XL6000 utilizes 1/6 of the floor space of its nearest competitor. A testament to the quality and durability of the XL6000 are the over 800 installations worldwide.

Product Description

A Servo Controlled Sewing Machine that is used in the Textile Industry. This Machine is Capable of Sewing Various Quilt Patterns that are Supplied to the Machine in a G-Code Machine Format. A DLL (data description language) Program that Allows the Translation of Pattern G-Codes to a Format that the EMC-2100 Controller Understands. An Industrial Indexing Systems EMC-2100 Programmable Automation Controller Controls all Three Servomotors.


Industrial Indexing Systems Designed and Manufactured the SERCOS Based Custom Servo Automation System for the XL6000 for the Industrial Quilting Industry.

Servo System Design

  • Design Incorporated the Emerald Programmable Automation Controller, 3 Servo Motors, Emerald Servo Drives, and Fiber Optic Devices.
  • Emerald Programming Language (EML – Emerald Motion Language) has a Powerful set of Math, Motion, I/O and Networking Instructions for This Custom Designed Software Application Program. SFO 3251 is an application written in the IIS EDE (Emerald Development Environment IDE) with EML. This application contains the necessary routines to direct the operation of the EMC-2100 during sewing and other various tasks. SFO-3252 is a front-end application written in Visual BASIC as an operator interface. This is an application that is loaded into a touch screen to provide the operator with various command buttons and menus to direct the operation of SFO 3251.
  • Servo System Provides Precise Phase Synchronism Between the X-Axis, Y-Axis and the Needle.
  • Emerald Servo Controller Drives the Motors Attached to the X, Y and Needle Axes.
  • The Most Demanding Part of the Application is Keeping the X, Y Actuators Phase Locked to the Needle so There is Consistent Stitch Length is Produced Under all Sewing Conditions.

EMC-2100 Controller Features

  • Contains a blend of open architecture features with a true real-time operating system
  • The result is a state-of-the art performance and superior connectivity to other systems and network components.
  • 64-bit MIPS processor
  • SERCOS InterfaceTM Drive and I/O Network
  • DeviceNetTM /CanBus port
  • Two Rs-232 ports
  • Ethernet Port
  • Encoder master follower input
  • Programmable limit switch (PLS) Functions
  • 2 software simulated motors (pacers)
  • Failsafe watchdog timer and high visibility status displays
  • Controller is programmed using our friendly Emerald Motion Programming Language (EML) and powerful new Emerald Development Environment (EDE) software tools for the PC.

Machine Footprint

  • Length: 17′
  • Width: 5′


  • Standard Sewing Line: 84″ x 96″
  • Maximum Material Size: 140″ x 140″
  • Maximum Sewing Line: 128″ x 128″
  • Maximum Axis Speed: 1,000 IPM – inches per minute
  • Max. sewing speed: 4,000 SPM – stitches per minute

Material Sizes

  • Standard Material Size up to 96″ x 108″

System Features

  • Uses 1/6 of the Floor Space Compared to Conventional Panel Quilter
  • Fully Computer Controlled Sewing Head
  • Automatic Bobbin Changer
  • w/ Two Quick-Change Carousels that Hold 8 Bobbins Each
  • Auto Index Conveyor
  • Hands Free Positioning of Comforter
  • Color Touch Screen Operator Interface
  • High Speed Fiber Optic Based Digital Servo Motors and Drives
  • QuiltCad Pattern Design Software

Software Features

  • Features of the Emerald Motion Language (EML)

Single Needle Comforter Quilting Machine XL 6000

ABM International, Inc. manufactures the world’s highest production, lowest cost computerized quilting machine

With just one operator, the XL6000 Computer Quilter can produce up to 250 comforters of average design per shift. It features three-axis digital brush less servo control, providing superior quality patterns, ease of pattern and size changes, and low maintenance operation. Utilizing the unique XL6000 Frame Changing Table, one operator stretches and racks a comforter while the machine simultaneously quilts another comforter.

Want more
Single Needle Panel Quilting Machine
Call us today at
to speak with one of our knowledgeable representatives.
White Paper

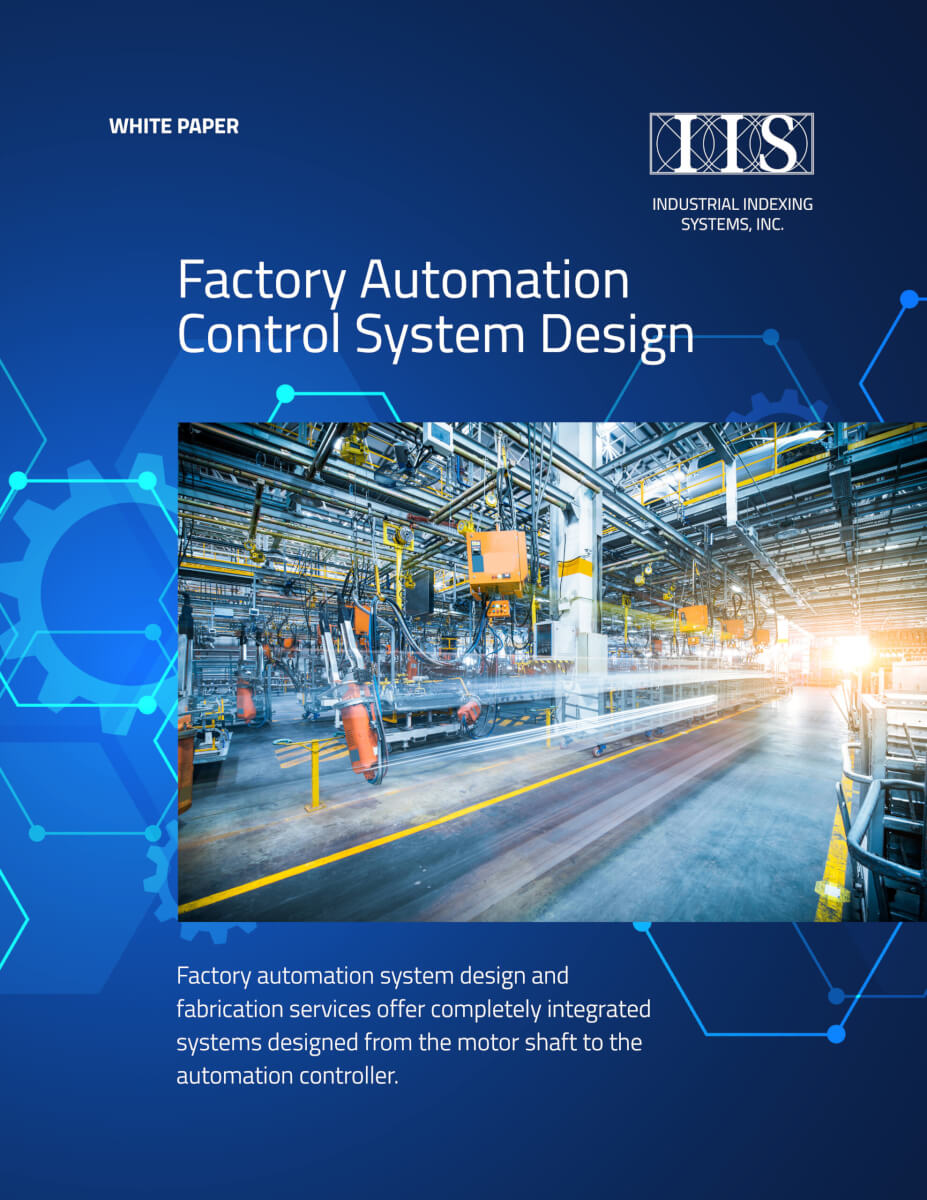

Factory Automation Control System Design
