Precision Speed Control Using Luminary Drives
Precise speed control is crucial for reliable results. Knowing speed is set and regulated, within a tolerance of +0.1 RPM for extended periods of time, assures consistent results.
Using a Luminary drive, speed of the motor shaft is measured on a periodic time-base and compared to the input target value. Any difference is applied as a correction to the torque control that is needed to accelerate or decelerate the motor shaft back to the desired speed.
The IIS Luminary Digital Drive and motor combinations range from 50 watts to 3500 watts with speeds to 4000 RPM.

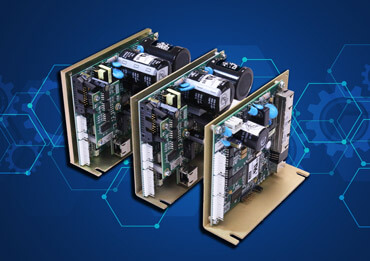

Luminary Digital Drives
- Drive interface bypasses normal analog circuit path to allow access to digital registers which control operation of speed control loop.
- Shaft speed stays constant within a small tolerance due to the quick reaction time of the correction applied to the torque control loop.
- Consistent results for liquid mixing or pumping.
Industrial Indexing Systems assists engineers in creating motion control solutions, and has a primary, enduring goal to bring state-of-the-art servo system products to practical use on the factory floor.
