The Shibaura/Toshiba Machine X Series are high performance servo products available in North America with local stock, support and service. The X Series represents quality products at competitive prices.

High speed and performance

Excellent speed control is realized by the use of dedicated speed/current digital control loop hardware and high-speed sampling rate of the motor’s positioning sensor. The amplifier includes a servo loop damping function creating stable motion operations in machines of low rigidity construction.

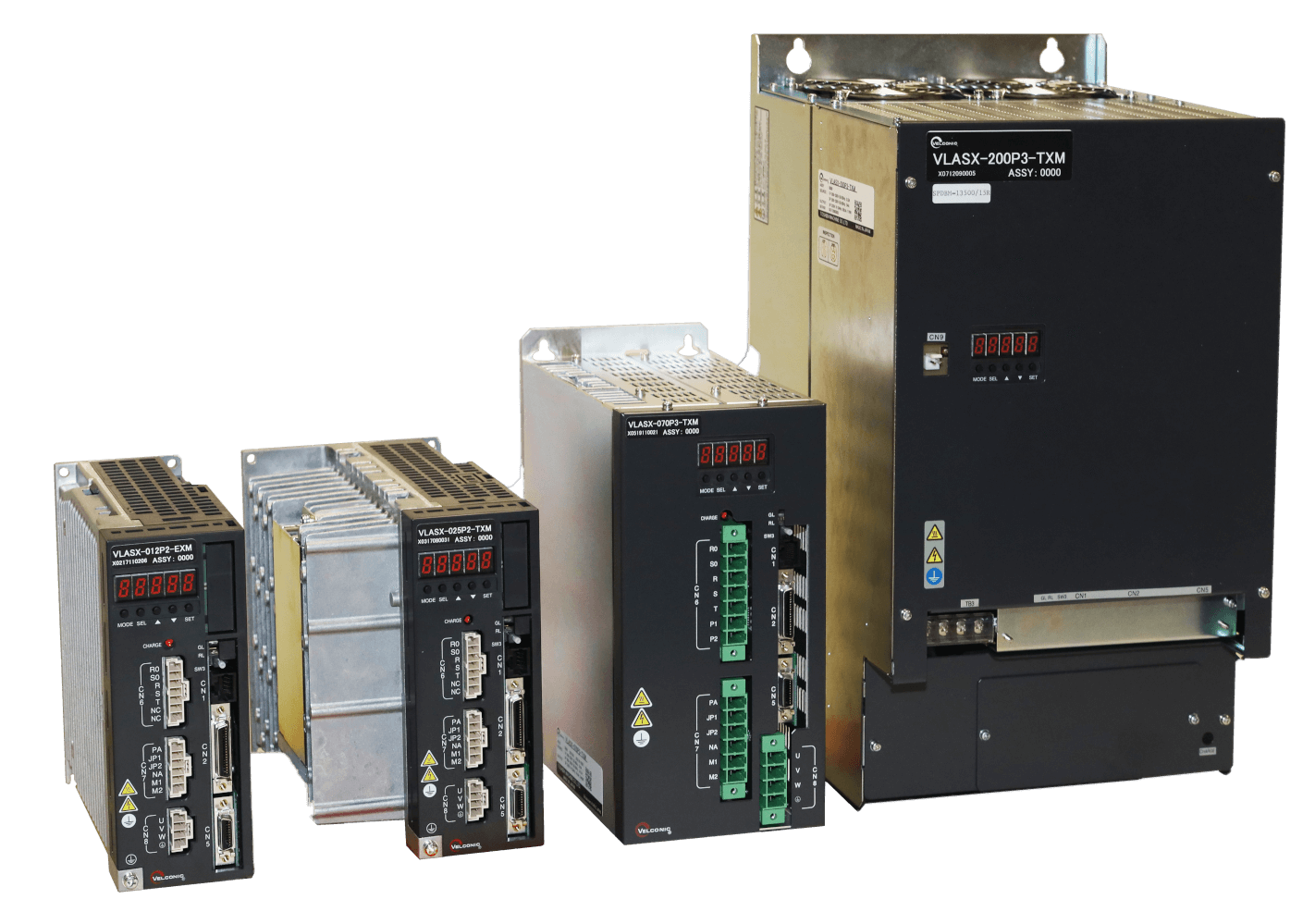

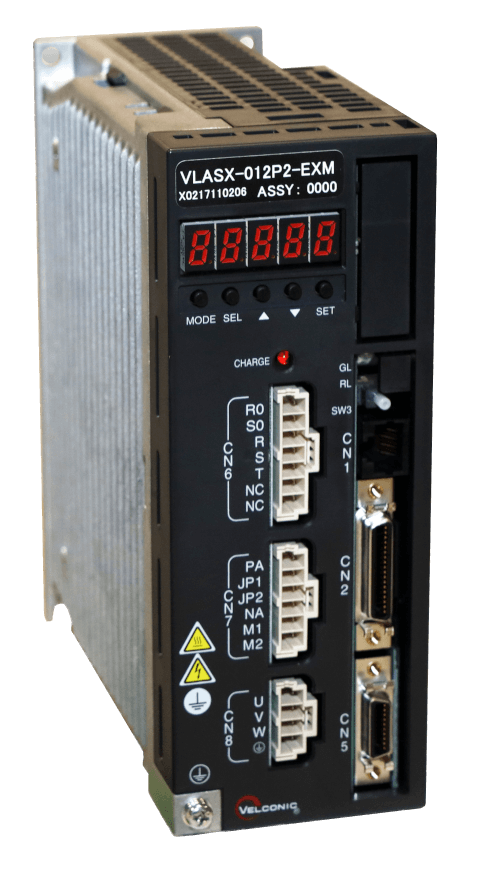

The VLASX amplifier models offered by SHIBAURA/Toshiba Machine

The standard amplifiers feature a built-in command system that allows machine control for speed, current, direct feed and draw control. Direct feed and draw control modes utilize the pulse and direction type input or a slave encoder input. Both current and speed control utilize an analog +/- 10 VDC input command. Available in ten sizes; 2.2 to 166 Arms/phase, 230 to 460 VAC.

Built-In Machine Control Operations:

  • Speed control mode
  • Current control mode
  • Pulse and Direction Position Control mode
  • Change Speed/Current/Position mode dynamically
  • Direct feed mode
  • Draw control mode

Motor Features

  • 30 to 55kW Rated Power Output
  • 1500 to 5000 RPM Speeds
  • High Energy Density Magnets for High Performance in Small Frame Size
  • Low and Medium Inertia Models
  • Metric Mounting
  • High Torque-to-Inertia Ratio
  • Integral Holding Brakes

Servo Amplifier Features

  • +/- 10VDC Speed or Torque Control
  • Pulse and direction RS422 inputs for use as stepper replacement or with an external controller
  • 24VDC I/O General-purpose input
  • Follower encoder input for electronic gearing application
  • RS422 encoder ABZ emulation output with scalable resolution
  • Multiple Modes of Operation
    • Speed
    • Current
    • Position
    • Speed / Current / Position (Changeable on the Fly)
    • Direct Feed (Preset Speeds)
    • Draw Control (Follower Electronic Ratio)
  • Four Auto Tuning Modes →
  • Panel Mount Enclosure Design
  • Five Segment Status Display
  • Resolver, Encoder and Absolute Motor Feedback Options Simulated Encoder Output
  • ShanX PC Software Tools With Oscilloscope Functionality for the Shibaura/Toshiba drives

Control Circuit Connection

Industry Standards

  • UL /CE

Easy configuration adjustments make for
a straight forward setup

You can select four auto-tuning system modes according the servo system configuration. You can set various servo loop parameters, observe frequency analysis, monitor profile measurements, view digital input/output states, and display alarms on a personal computer using VelWin, a software designed for Microsoft Windows.

Downloadable Brochures and Specs

Amplifier Specifications

Request BS Servo Amplifiers Brochure

Want more
Shibaura Machine Products
information?
Call us today at
to speak with one of our knowledgeable representatives.

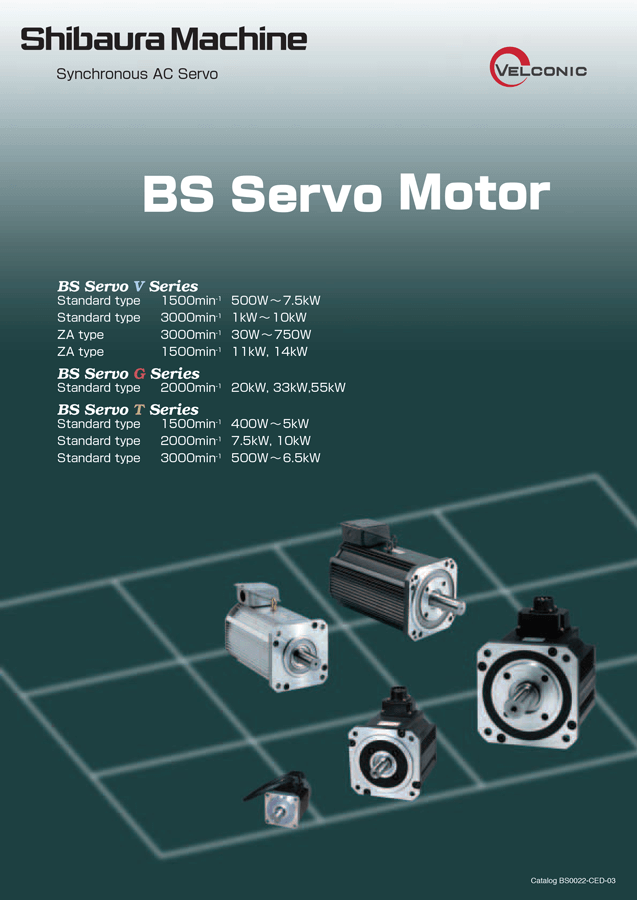

Shibaura BS Motors
